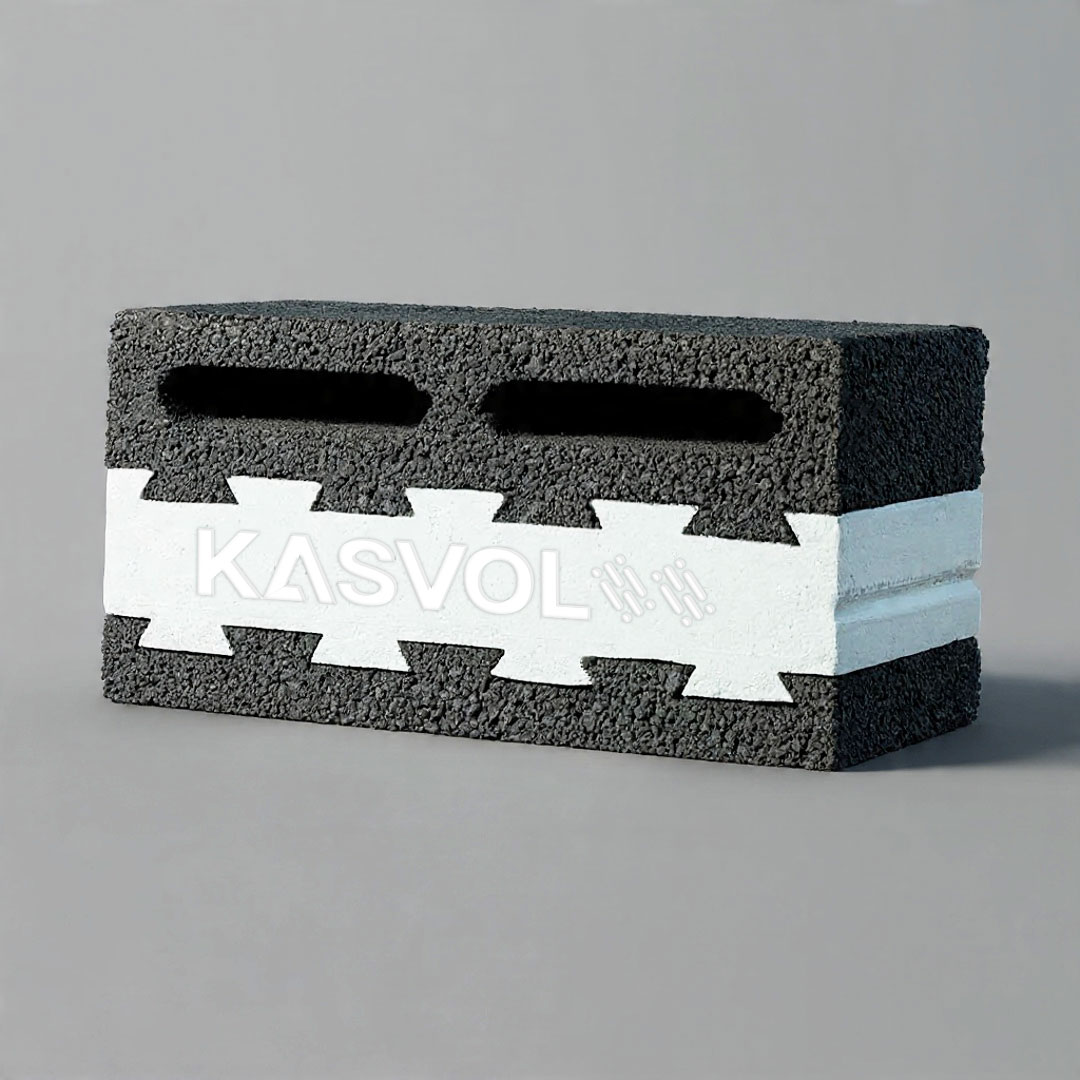

Saudi Ribbed Volcanic Insulated Block | 18 N/mm²
Saudi-Made | Thermally Insulated | Ribbed Design | SBC Certified
Size and packaging guidelines
Understanding Block Dimensions
KASVOL volcanic blocks are specified by three dimensions:
| Dimension | Description | Importance |
|---|---|---|
| Length (L) | Horizontal measurement along the wall | Determines coverage per block |
| Height (H) | Vertical measurement of each course | Affects number of courses needed |
| Width (W) | Wall thickness | Impacts structural strength and insulation |
Standard Format: Length x Height x Width (mm)
Example: 400mm x 200mm x 200mm
Quick Reference: Available Sizes
| Width | Length x Height | Best Applications |
|---|---|---|
| 100mm | 400mm x 200mm | Interior partitions, lightweight walls, renovation |
| 150mm | 400mm x 200mm | Interior walls, light commercial, partition walls |
| 200mm | 400mm x 200mm | Standard walls, residential, general construction |
| 250mm | 400mm x 200mm | Enhanced height option for faster construction |
| 300mm | 400mm x 200mm | Exterior walls, foundations, cold storage, max insulation |
| Specification | Chair | Armchair | Sofas |
| Height | 37" | 42" | 42" |
| Width | 26.5" | 32.5" | 142" |
| Depth | 19.5" | 22.5" | 24.5" |
| Assembly Required | No | No | Yes |
| Packaging Type | Box | Box | Box |
| Package Weight | 55 lbs. | 64 lbs. | 180 lbs. |
| Packaging Dimensions | 27" x 26" x 39" | 45" x 35" x 24" | 46" x 142" x 25" |
The Saudi Ribbed Volcanic Insulated Block is a premium construction material manufactured in the Kingdom of Saudi Arabia, combining the natural advantages of volcanic aggregate with precision engineering. Featuring a distinctive ribbed design, this block delivers excellent thermal performance, reliable structural strength, and lightweight properties—ideal for residential and general construction applications.
With an impressive 6-hour fire resistance rating and superior thermal conductivity of 0.125 W/m·K, this block provides exceptional safety and energy efficiency for villas, apartments, and commercial buildings.
| Product Type |
Saudi Ribbed Volcanic Insulated Block |
|---|---|
| Face Dimensions |
400mm (L) x 200mm (H) x 200mm (W) |
| Core Configuration |
2 hollow cores |
| Dry Density |
1000 kg/m³ – Lightweight volcanic aggregate |
| Average Strength Values |
3.6 Mpa ,4.2 Mpa ,5.3 Mpa |
| Thermal Conductivity |
0.125 W/m·K – Excellent insulation performance |
| Block Type |
Volcanic Insulated Block |
| Classification |
High-performance thermal insulation |
| Available Finishes |
Rough ,Smooth |
| Material |
Premium volcanic aggregate concrete |
| Certification |
Compliant with SASO (Saudi Standards, Metrology and Quality Organization) |
Wherever You Build, We Deliver
At KASVOL, we understand that even the finest volcanic blocks are only valuable when they arrive at your site on time and in perfect condition. That's why we've built a robust, reliable logistics network that spans the entire Kingdom of Saudi Arabia.
From major metropolitan centers to the most remote development sites, our delivery services ensure that your materials are there when you need them—keeping your project on schedule and within budget.
Our Delivery Promise
- On Time: Scheduled deliveries that align with your project timeline
- In Full: Complete orders, every time—no partial shipments
- Undamaged: Professional handling and secure transport
- Kingdom wide: Service across all 13 provinces of Saudi Arabia
- Reliable:Track record you can count on
We ensure your KASVOL volcanic blocks arrive on schedule, in full quantity, and in perfect condition—backed by our nationwide logistics network and commitment to your project's success.
